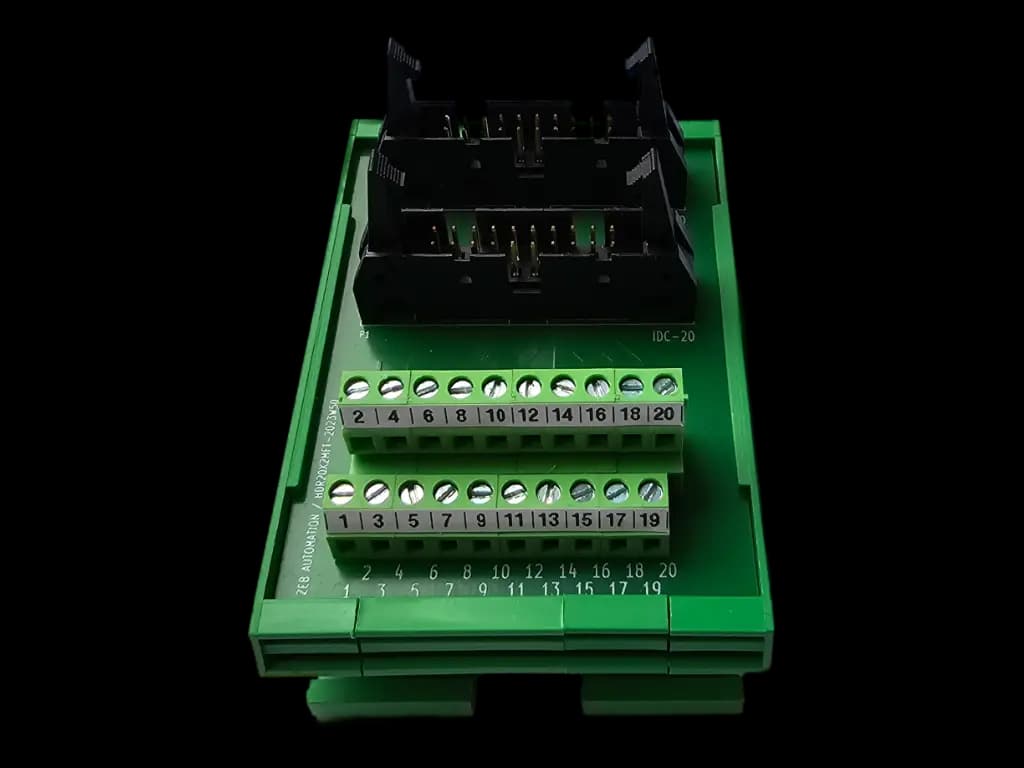

Break-out module 20-pin header connector on screw terminals
Product Information
Item No. hdr20x2mft
Our header break-out modules connect header connectors and screw terminals uncomplicatedly. With various plugs and sockets, they enable direct parallel connection. The terminals facilitate the connection with existing fixed wiring.
24,50 €
In stock
pcs.
Highlights
- 20x2-pin Header (RM 2,54 mm) connector
- Easy connection of Header (RM 2.54) connectors with screw terminals
- Easy connection to existing hardwiring
- Easy installation by snapping onto common mounting rails TS15, TS35 and G32
Offers are valid for businesses only
All prices are excl. VAT
Technical Details
General
- Header Type
- Pin
- Number of Pins
- 20x2
- Header Housing
- AMP-LATCH / FCI
- Locking
- Locking Latch
- No. of Terminals
- 20
- Terminals
- Screw terminals, Pitch 3,81 mm
- Wire Range
- 1 x 1,5 mm² (16 AWG) solid or stranded wire without ferrule, 1 x 0,5 mm² (20AWG) stranded wire with ferrule
- Electrical Rating
- 125 VAC / 1 A
- Dimensions
- 57 x 81 x 55 mm³
- Mounting
- Click-on mounting rails TS15 / TS35 / G32
- Mounting Direction
- Any desired desired
- Weight
- 0,087 kg
- Protection Type
- IP00
- Ambient Conditions
- -5 ° C. .. +65 ° C under normal installation conditions (cabinet). In outdoor activities the module should be protected with a suitable Shell, furthermore with protection against direct sunlight, frost and condensation.
- RoHS - Conformity
- The relevant directives will be observed. However, no own analysis will carried out. We trust the related statements of suppliers.
- Certifications
- CE
- Technology
- Connectors on 2-layer PCB
- EAN / UPC
- --
- Delivery Contents
- HDR20x2MFT (The color of the headers may vary as not all pin numbers are available from the same manufacturer)
- Customs Tariff Number
- 85340090
- Country of Origin
- Germany
