Item No. hdr44_50_60_64mft

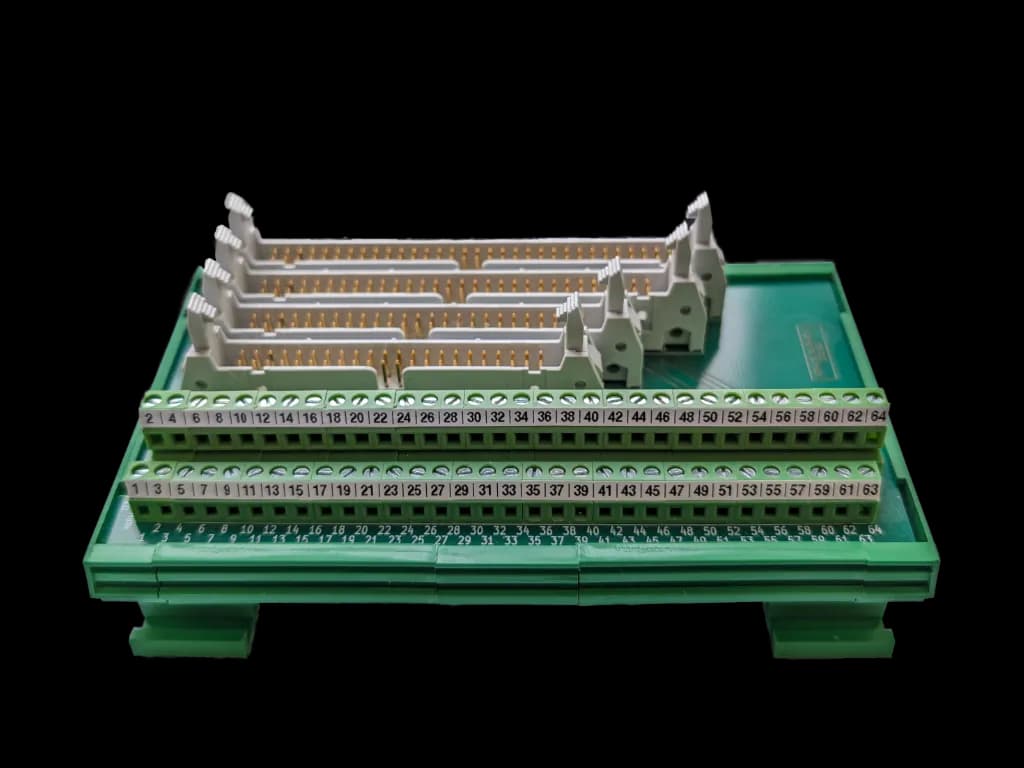

Break-out module 44/50/60/64-pin header connector on screw terminals
The HDR44/50/60/64MFT connects double-row headers with 44, 50, 60 or 64 pins at 2.54 mm pitch to screw terminals. This passive breakout module connects to existing fixed wiring and snaps onto TS15, TS35 or G32 mounting rails.
Highlights
- 44/50/60/64-pin Header (RM 2,54 mm) connector
- Easy connection of Header (RM 2.54) connectors with screw terminals
- Easy connection to existing hardwiring
- Easy installation by snapping onto common mounting rails TS15, TS35 and G32
48,00 €
In stock
excl. VAT
pcs.
Delivery within Germany in 1–4 business days
Free shipping within Germany from 150,00 €
Offers are valid for businesses only · All prices are excl. VAT
Technical Details
General
- Header Type
- Pin
- Number of Pins
- 44 / 50 / 60 / 64
- Header Housing
- AMP-LATCH / FCI
- Locking
- Locking Latch
- No. of Terminals
- 64
- Terminals
- Screw terminals, Pitch 3,81 mm
- Wire Range
- 1 x 1,5 mm² (16 AWG) solid or stranded wire without ferrule, 1 x 0,5 mm² (20AWG) stranded wire with ferrule
- Electrical Rating
- 125 VAC / 1 A
- Dimensions
- 134 x 81 x 55 mm³
- Mounting
- Click-on mounting rails TS15 / TS35 / G32
- Mounting Direction
- Any orientation
- Weight
- 0,218 kg
- Protection Type
- IP00
- Ambient Conditions
- -5 ° C. .. +65 ° C under normal installation conditions (cabinet). In outdoor activities the module should be protected with a suitable Shell, furthermore with protection against direct sunlight, frost and condensation.
- RoHS - Conformity
- The relevant directives will be observed. However, no own analysis will carried out. We trust the related statements of suppliers.
- Certifications
- CE
- Technology
- Connectors on 2-layer PCB
- EAN / UPC
- --
- Delivery Contents
- The module (The color of the headers may vary as not all pin numbers are available from the same manufacturer)
- Customs Tariff Number
- 85340090
- Country of Origin
- Germany
