Item No. xsp11r

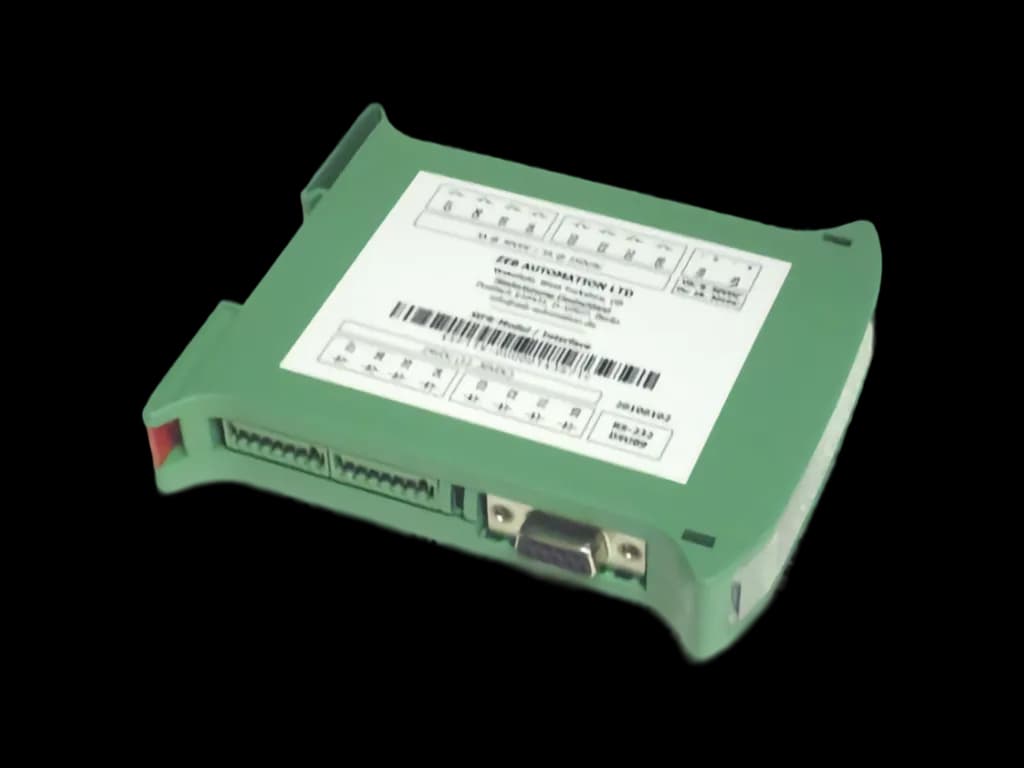

Narrow multifunction relay for 8 digital inputs and 8 digital outputs via RS232
This slim multi-function relay, also known as an "RS232 relay", connects 8 digital inputs and 8 digital outputs to a serial RS232 interface. Inputs and outputs are galvanically isolated by optocouplers. Both the input channels and outputs are mutually isolated. The outputs use PCN-124D3MHZ relays. Additional optocouplers isolate the relays from the rest of the circuit, largely preventing feedback caused by capacitive coupling between the contacts and coil system.
Highlights
- Slim enclosure
- 8 digital inputs and outputs
- Serial RS232 connection
- Equipped with PCN-124D3MHZ relays
- Easy snap-on mounting on TS15, TS35 and G32 DIN rails
190,00 €
In stock
excl. VAT
pcs.
Delivery within Germany in 1–4 business days
Free shipping within Germany from 150,00 €
Offers are valid for businesses only · All prices are excl. VAT
Technical Details
Digital Inputs (8) I0 .. I7
- Type
- Optocoupler
- Voltage
- 0 .. 30VDC
- Current
- 4mA per channel @ 24VDC
- Switching threshold
- approx. 4VDC
Digital Outputs (8) O0 .. O7
- Type
- Relay, Tyco PCN-124D3MHZ (24VDC coil)
- Contact rating
- 3A @ 30VDC, 3A @ 250VAC
- Minimum contact rating
- 1mA / 5V
- Service life
- min. 20 x 10^6 switching operations
Supply - Logic (Ub)
- Type
- Nominal voltage 24VDC
- Voltage
- 8 .. 30VDC
- Current
- 12mA @ 24VDC
- Power consumption
- 280mW @ 24VDC
Supply - Relays (Us)
- Type
- Nominal voltage 24VDC
- Voltage
- 8 .. 30VDC
- Current
- Number of active relays x 6.2mA @ 24VDC (max. 50mA @ 24VDC)
Status Indicators
- Inputs (8)
- LED indicates an applied positive voltage >2V
- Outputs (8)
- LED, directly on the load output, indicates the 'ON' state
- Supply (1)
- LED indicates the supply voltage (logic)
- Heartbeat (1)
- LED flashes (Normal: 1Hz, Program: 2.5Hz, Remote control: 0.5Hz)
- Command (1)
- LED flashes when a command is received
Connections
- Type
- Pluggable connectors
- Supply
- Pin header 4-pin MCV 0.5/ 4-G-2.5
- Inputs/Outputs
- Pin header 8-pin MCV 0.5/ 8-G-2.5
- RS232
- DSUB9 socket DE9S (screw connection UNC 4/40)
General
- Module identification
- In addition to assigning a custom name to the module, each module has a unique, immutable 12-digit serial number in hexadecimal notation.
- Dimensions
- 100mm(H) x 22.5mm(W) x 120mm(D), with outer packaging: 180mm(L) x 165mm(W) x 50mm(H)
- Mounting
- Snaps onto TS15 / TS35 / G32 DIN rails
- Mounting position
- Any
- Weight
- 0.175kg
- Protection class
- IP00
- Ambient conditions
- -5°C .. +65°C under normal installation conditions in a control cabinet. In confined installations, adequate ventilation or cooling must be provided. Outdoor applications require a suitable enclosure that protects against direct sunlight, frost and condensation.
- RoHS conformity
- Compliance with applicable regulations is ensured based on the corresponding declarations from upstream suppliers; no independent material analyses are performed.
- Approvals
- CE
- Communication parameters
- Fixed: 9600bps, 8 data bits, 1 stop bit, no parity
- Technology
- Microcontroller and discrete components on a double-sided printed circuit board. An integrated bootloader allows firmware updates through the communication interface.
- Scope of delivery
- MFR module (preconfigured as an I/O interface for 8 channels), four 8-pin connectors (FK-MC 0.5/8-ST-2.5), one 4-pin connector (FK-MC 0.5/4-ST-2.5), the 'MFR Tools' CD and operating instructions
- Customs tariff number
- 85364110
- Origin / Manufacturing
- Germany
