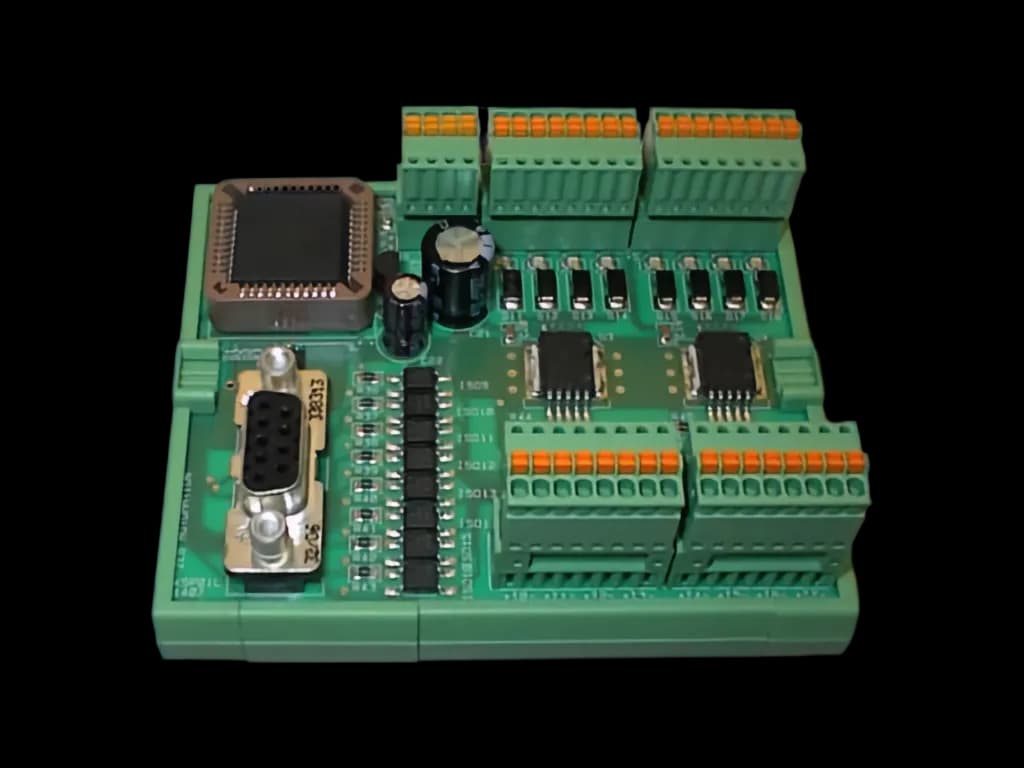

Multifunction relay for 8 digital inputs and 8 digital outputs via RS232
Product Information
Item No. xsp01l
The multi-function relay, also known as the "RS232 relay", allows the connection of 8 digital inputs and 8 digital outputs to a serial RS232 interface. Inputs and outputs are galvanically isolated by optocouplers. While the input channels are also galvanically isolated from each other, the outputs have a common supply and are equipped with 'High-Side' switches.
160,00 €
pcs.
Offers are valid for businesses only
All prices are excl. VAT
Highlights
- 8 digital inputs and outputs
- Serial RS232 connection
- Equipped with 'High-Side' switches
- Uncomplicated mounting by snapping onto common mounting rails TS15, TS35 and G32
Availability
Delivery within 1 to 3 business days
Technical Details
Digital Inputs (8) I0 .. I7
- Type
- Optocoupler
- Voltage
- 0 .. 30VDC
- Current
- 4mA per channel @ 24VDC
- Switching threshold
- approx. 4VDC
Digital Outputs (8) O0 .. O7
- Type
- Semiconductor switch, positive-switching
- Voltage
- 12 .. 30VDC (see supply - load)
- Current
- max. 600mA per output channel (resistive load)
Supply - Logic (Ub)
- Type
- Nominal voltage 24VDC
- Voltage
- 8 .. 30VDC
- Current
- 12mA @ 24VDC
- Power consumption
- 280mW @ 24VDC
Supply - Load (Us)
- Type
- Nominal voltage 24VDC
- Voltage
- 8 .. 30VDC
- Current
- Sum (I O-0 .. I O-7) + 4mA @ 24VDC
Status Indicators
- Inputs (8)
- LED indicates an applied positive voltage >2V
- Outputs (8)
- LED, directly on the load output, indicates the 'ON' state
- Supply (1)
- LED indicates the supply voltage (logic)
- Heartbeat (1)
- LED flashes (Normal: 1Hz, Program: 2.5Hz, Remote control: 0.5Hz)
- Command (1)
- LED flashes when a command is received
Connections
- Type
- Pluggable connectors
- Supply
- Pin header 4-pin MCV 0.5/ 4-G-2.5
- Inputs/Outputs
- Pin header 8-pin MCV 0.5/ 8-G-2.5
- RS232
- DSUB9 socket DE9S (screw connection UNC 4/40)
General
- Module identification
- In addition to the possibility of assigning a free name to the module, each module contains a unique, non-changeable, 12-digit serial number in hexadecimal notation.
- Dimensions
- 90mm(L) x 77mm(W) x 40mm(H), with outer packaging: 115mm(L) x 85mm(W) x 50mm(H)
- Mounting
- Snaps onto TS15 / TS35 / G32 mounting rail
- Mounting position
- Any
- Weight
- 0.175kg
- Protection class
- IP00
- Ambient conditions
- -5°C .. +65°C under normal installation conditions (switch cabinet). In confined installation conditions, adequate ventilation or cooling must be provided. For outdoor applications, suitable enclosures with protection against direct sunlight, frost and condensation must be provided.
- RoHS - Conformity
- Compliance with relevant regulations is ensured. However, no independent analyses are carried out, but reliance is placed on the corresponding declarations of the upstream suppliers.
- Approvals
- CE
- Communication parameters
- 9600bps, 8 data bits, 1 stop bit, no parity
- Technology
- Microcontroller and discrete components on a double-sided printed circuit board. The firmware can be updated at any time via the communication interface using an integrated bootloader.
- Scope of delivery
- MFR module (preconfigured as I/O interface for 8 channels), 4 connectors 8-pin (FK-MC 0.5/8-ST-2.5), 1 connector 4-pin (FK-MC 0.5/4-ST-2.5), CD 'MFR Tools' and operating instructions
- Customs tariff number
- 85364110
- Origin / Manufacturing
- Germany
