Item No. dsub50mft

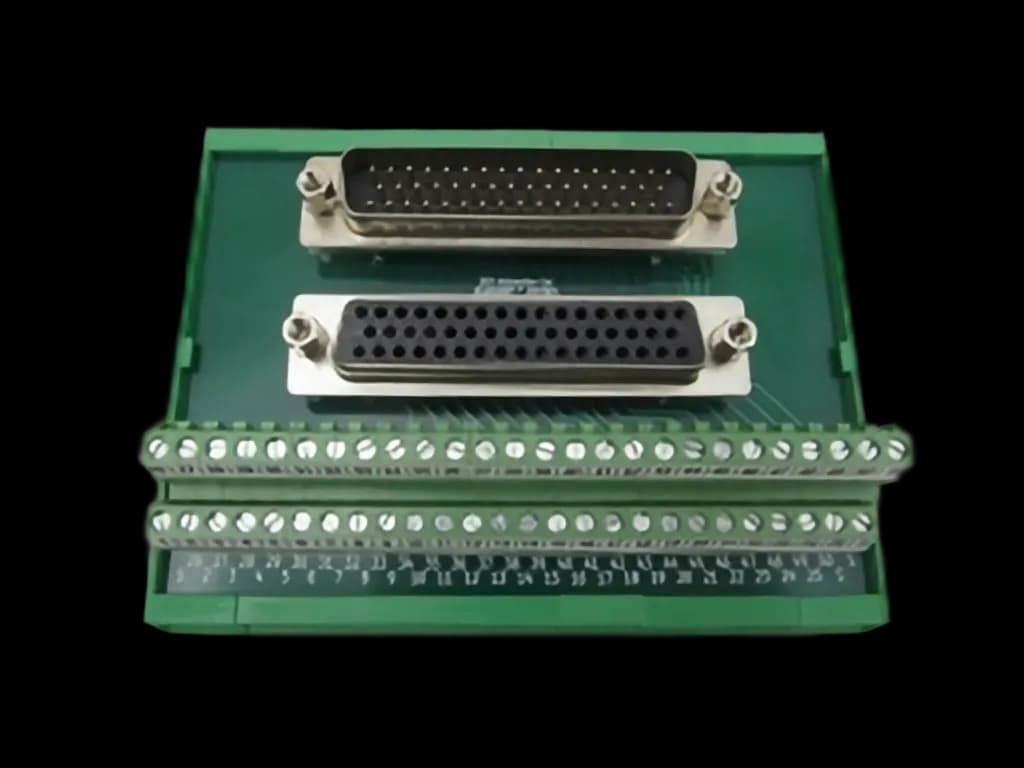

Break-out module 50-pin D-Sub connector on screw terminals
Our D-Sub breakout modules provide a direct, pin-to-terminal connection between D-Sub connectors and screw terminals. Parallel male and female connectors support pass-through wiring, while the accessible terminals simplify integration with existing field wiring.
Highlights
- 50-pin D-sub Connector
- Easy connection of D-sub connectors with screw terminals
- Easy connection to existing hardwiring
- Easy installation by snapping onto common mounting rails TS15, TS35 and G32
85,00 €
Temporarily out of stock
excl. VAT
This module is manufactured in-house. Ask us about lead time and quantities — no obligation.
Delivery within Germany in 1–4 business days
Free shipping within Germany from 150,00 €
Offers are valid for businesses only · All prices are excl. VAT
Technical Details
General
- D-sub Connector
- Plug + socket
- D-sub Ways
- 50
- D-sub Shell
- DD
- D-sub Lock
- Hex Nut UNC 4-40
- No. of Terminals
- 52 (1-50, S, S)
- Terminals
- Screw terminals, Pitch 3,81 mm
- Wire Range
- 1 x 1.5 mm² (16 AWG) solid or stranded without ferrule, 1 x 0.5 mm² (20G) ferrule
- Electrical Rating
- 125 VAC / 1 A
- Dimensions
- 105 x 82 x 45 mm³
- Mounting
- Click-on mounting rails TS15 / TS35 / G32
- Mounting Direction
- Any desired
- Weight
- 0.165 kg
- Protection Type
- IP00
- Ambient Conditions
- -5°C .. +65°C under normal installation conditions (in the control cabinet). Suitable protective enclosures with protection against direct sunlight, frost and condensation must be provided for outdoor applications.
- RoHS - Conformity
- Compliance with relevant regulations is ensured. However, no independent analyses are carried out, and the declarations of the upstream suppliers are relied upon.
- Certifications
- CE
- Technology
- Standard Connector on a 4-layer printed circuit board
- EAN / UPC
- 045635937499
- Delivery Contents
- DSUB50MFT
- Customs Tariff Number
- 85340090
- Country of Origin
- Germany
