Item No. xup01r

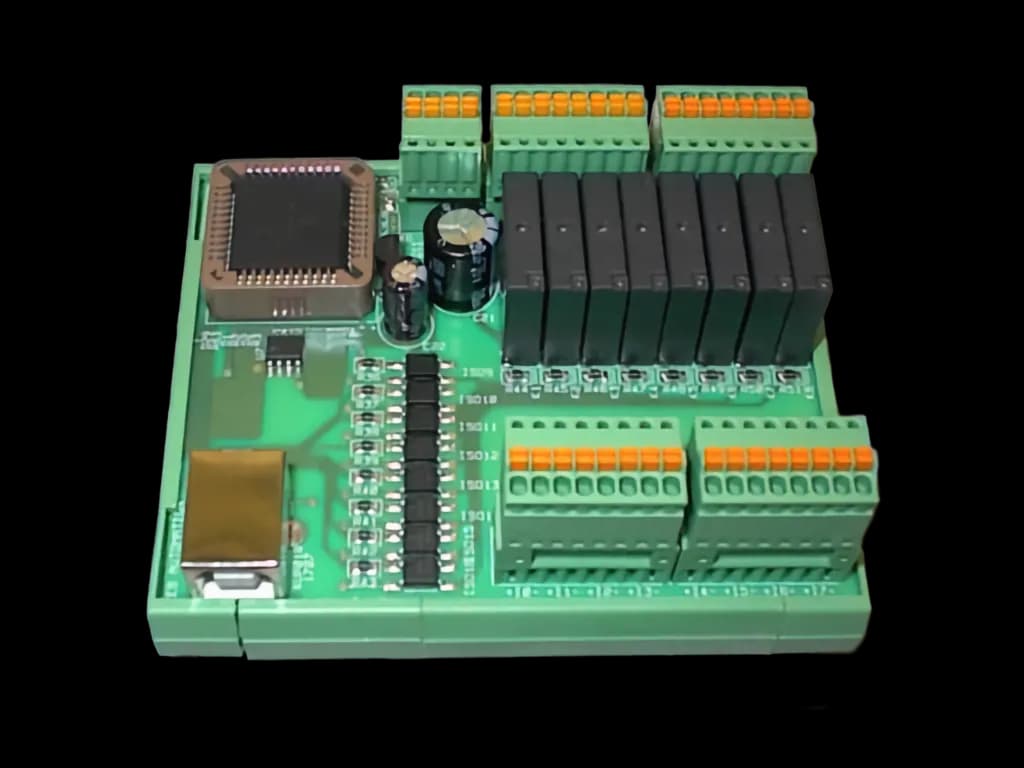

Multifunction relay for 8 digital inputs and 8 digital outputs via USB
The XUP01R is a USB I/O module with 8 digital inputs for 24 V DC signals and 8 relay outputs. It communicates through a virtual COM port and uses Tyco PCN-124D3MHZ relays. Inputs and outputs are galvanically isolated by optocouplers, and the input channels and relay outputs are also isolated from each other. Additional optocouplers isolate the relays from the rest of the circuit to reduce feedback between the contacts and coil system.
Highlights
- 8 digital inputs and outputs
- USB connection
- Equipped with Tyco PCN-124D3MHZ relays
- Easy snap-on mounting on TS15, TS35 and G32 DIN rails
180,00 €
Temporarily out of stock
excl. VAT
This module is manufactured in-house. Ask us about lead time and quantities — no obligation.
Delivery within Germany in 1–4 business days
Free shipping within Germany from 150,00 €
Offers are valid for businesses only · All prices are excl. VAT
Technical Details
Digital Inputs (8) I0 .. I7
- Type
- Optocoupler
- Voltage
- 0 .. 30VDC
- Current
- 4mA per channel @ 24VDC
- Switching threshold
- approx. 4VDC
Digital Outputs (8) O0 .. O7
- Type
- Relay, Tyco PCN-124D3MHZ (24VDC coil)
- Contact rating
- 3A @ 30VDC, 3A @ 250VAC
- Minimum contact rating
- 1mA / 5V
- Mechanical endurance
- min. 20 x 10^6 switching operations
Supply - Logic (Ub)
- Type
- Nominal voltage 24VDC
- Voltage
- 8 .. 30VDC
- Current
- 12mA @ 24VDC
- Power consumption
- 280mW @ 24VDC
Supply - Relays (Us)
- Type
- Nominal voltage 24VDC
- Voltage
- 18 .. 30VDC
- Current
- Number of active relays x 6.2mA @ 24VDC (max. 50mA @ 24VDC)
Status Indicators
- Inputs (8)
- LED indicates an applied positive voltage >2V
- Outputs (8)
- LED, directly on the load output, indicates the 'ON' state
- Supply (1)
- LED indicates the supply voltage (logic)
- Heartbeat (1)
- LED flashes (Normal: 1Hz, Program: 2.5Hz, Remote control: 0.5Hz)
- Command (1)
- LED flashes when a command is received
Connections
- Type
- Pluggable connectors
- Supply
- Pin header 4-pin MCV 0.5/ 4-G-2.5
- Inputs/Outputs
- Pin header 8-pin MCV 0.5/ 8-G-2.5
- USB
- USB Type-B socket
General
- Module identification
- In addition to assigning a custom name to the module, each module has a unique, immutable 12-digit serial number in hexadecimal notation.
- Dimensions
- 90mm(L) x 77mm(W) x 40mm(H), with outer packaging: 115mm(L) x 85mm(W) x 50mm(H)
- Mounting
- Snaps onto TS15 / TS35 / G32 DIN rails
- Mounting position
- Any
- Weight
- 0.175kg
- Protection class
- IP00
- Ambient conditions
- -5°C .. +65°C under normal installation conditions in a control cabinet. In confined installations, adequate ventilation or cooling must be provided. Outdoor applications require a suitable enclosure that protects against direct sunlight, frost and condensation.
- RoHS conformity
- Compliance with applicable regulations is ensured based on the corresponding declarations from upstream suppliers; no independent material analyses are performed.
- Approvals
- CE
- USB converter
- FTDI FT232R chip. Install the appropriate driver for the operating system before using the module as an I/O interface. Communication uses a virtual COM port.
- Communication parameters
- Fixed for the virtual COM port: 9600bps, 8 data bits, 1 stop bit, no parity
- Technology
- Microcontroller and discrete components on a double-sided printed circuit board. An integrated bootloader allows firmware updates through the communication interface.
- Scope of delivery
- MFR module (preconfigured as an I/O interface for 8 channels), four 8-pin connectors (FK-MC 0.5/8-ST-2.5), one 4-pin connector (FK-MC 0.5/4-ST-2.5), the 'MFR Tools' CD and operating instructions
- Customs tariff number
- 85364110
- Origin / Manufacturing
- Germany
